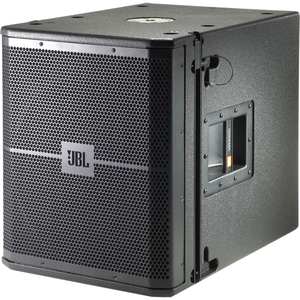

VRX Series 15" Suspendable Subwoofer System

The VRX915S is a compact, high power suspendable subwoofer system containing a 2265G-1 neodymium magnet, patented Differential Drive®, 15" woofer in a front-loaded, vented enclosure.

Power Rating : 800 W / 1600 W / 3200 W

Frequency Range : 35 Hz - 250 Hz
(-10 dB)

Dimensions
(H x W x D) : 496 mm x 420 mm x 597 mm
(19.5 in x 16.5 in x 23.5 in)

Frequency Response : 40 Hz - 250 Hz
(+/-3db)

System Maximum SPL : 126 dB SPL

System Sensitivity (1w @ 1m : 91 dB SPL

LF Driver : 1 x JBL 2265G-1, 250 mm (15 in) Differential Drive® woofer

Nominal Impedance : 4 Ohms

Active Tunings : Tunings available at www.jblpro.com

Enclosure : 15 mm - 18 mm, multi ply birch plywood

Suspension / Mounting : Top mounted M20 threaded socket for optional pole SS4-BK. Integrated flying hardware for use with array frame VRX-SMAF. 8 M10 fittings. Optional M10 eyebolt kit.

Finish : Black DuraFlex™ finish

Grille : Power coated, black, 16-gauge perforated steel with with acoustically transparent black foam backing.

Input Connectors : Switchable, +1/-1 or +2/-2

Net Weight : 26.3 kg (58 lb)
