12" Two-Way Line Array Loudspeaker System

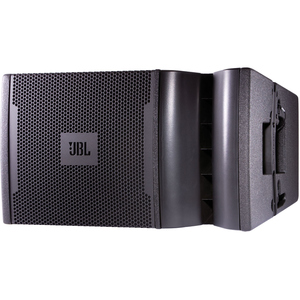

The VRX932LA-1 is a light-weight (46 lb / 21 kg) compact 12" two-way line array speaker system designed for use in arrays of up to six units.

Power Rating : 800 W / 1600 W / 3200 W

Frequency Range : 57 Hz - 20 kHz
(-10 dB)

Dimensions
(H x W x D) : 343 mm x 597 mm x 376 mm
(13.5 in x 23.5 in x 14.8 in)

Frequency Response : 75 Hz - 20 Hz
(+/-3db)

Coverage Pattern : 100 x 15 nominal

Crossover Modes : Bi-amp / passive, externally switchable

Crossover Frequency : 132 dB SPL peak 1.2 kHz

System Maximum SPL : Passive: 130 dB SPL peak , Bi-amp LF: 130 dB SPL peak

System Sensitivity (1w @ 1m : Passive: 95 dB SPL
Bi-amp LF: 95 dB SPL
Bi-amp HF: 114 dB SPL

LF Driver : 1 x JBL 2262H 305 mm (12 in) Differential Drive® woofer with
neodymium magnet, dual voice-coils, and dual magnetic gaps.

HF Driver : 3 x JBL 2408J, 38 mm (1.5 in) voice-coil, neodymium
compression driver

Nominal Impedance : Passive: 8 ohm
Bi-amp LF: 8 ohm
Bi-amp HF: 8 ohm

Active Tunings : Tunings available at www.jblpro.com

Enclosure : 18 mm, 11-ply birch plywood

Suspension / Mounting : Optional VRX932LA-AF line array frame kit

Finish : Black DuraFlex™ finish

Grille : Power coated, black, 16-guage perforated steel with with acoustically transparent foam

Input Connectors : Neutrik® Speakon® NL-4 (x2)

Net Weight : 21 kg (46 lb)
