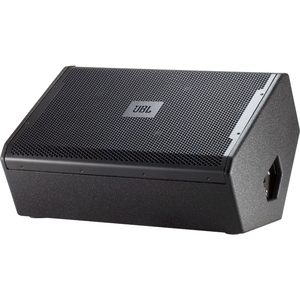

VRX Series Two-Way Stage Monitor

The VRX915M is a dedicated, compact and lightweight 15" two way touring-class floor monitor, with only a 375 mm (14.75 in) stage height and JBL’s latest neodymium-magnet transducers. Features one NL4 connector on each end and bi-amplified or full-range operation.

Power Rating : 800 W / 1600 W / 3200W

Frequency Range : 60 Hz - 20 kHz

Dimensions
(H x W x D) : 629 mm x 432 mm x 324 mm (375 mm stage height) 24.75 in x 17 in x 12.75 in (14.75" stage height)

Frequency Response : 70 Hz - 20 kHz

Coverage Pattern : 50° x 90° nominal

Crossover Modes : Passive / Bi-amp

Crossover Frequency : 1.1 kHz

System Maximum SPL : 127 dB SPL continuous (133 dB SPL peak)

System Sensitivity (1w @ 1m : 98 dB SPL

LF Driver : 1 x JBL 2265H 380 mm (15 in) Differential Drive® woofer 8 Ohms

HF Driver : 1 x JBL 2452H, 100 mm (4.0 inch) diameter voice coil, 38 mm (1.5 inch) exit, neodymium magnet compression driver 8 Ohms

Nominal Impedance : 8 ohms

Enclosure : Symmetrical stage monitor, 15/18 mm, plywood

Finish : Black DuraFlex™ finish

Grille : Powder coated, black, 16 gauge perforated steel with acoustically transparent black screen backing

Input Connectors : Neutrik® Speakon® NL-4 (x2), one on each end
