JBL

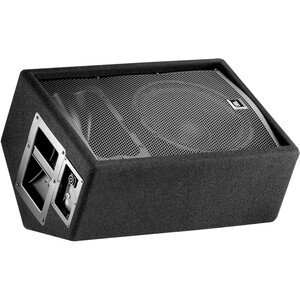

JRX200 Series 12" Two-Way Stage Monitor

Brand: JBL
Model: JRX212
UPC: 050036904490

High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
Attractive 18-gauge hexagon perforated, steel grille protects components from damage.
Dual-angle pole-mount socket allows the speaker to tilt 10°for more uniform audience coverage.
JBL 12 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
JBL 2414H-C 25 mm (1 in) polymer diaphragm
compression driver improves high frequency
performance as well as system reliability.
Non-resonant, all-steel handles are used.
Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
SonicGuard™ protects the high frequency driver from excess power without interrupting the performance.
The advanced network topology crossover design shapes
frequency response and delivers "coherent summation"
in the crossover region.
The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
more
Please log in to see your price

Related products

JRX200 Series 18″ Compact Subwoofer
JRX200 Series 18" Compact Subwoofer
Model: JRX218S
Brand:JBL
Please log in to see your price
View

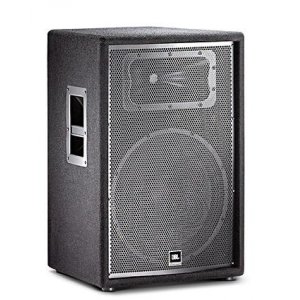

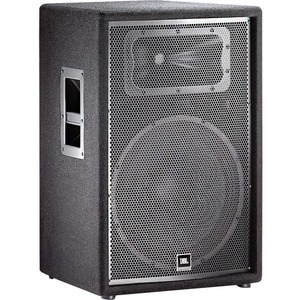

JRX200 Series 15″ Sound Reinforcement Loudspeaker
JRX200 Series 15" Sound Reinforcement Loudspeaker
Model: JRX215
Brand:JBL
Please log in to see your price
View

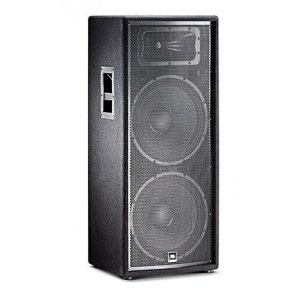

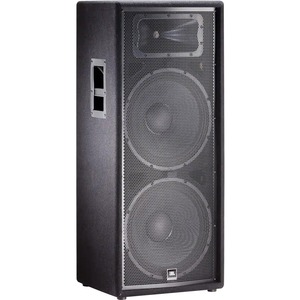

JRX200 Series Dual 15″ Sound Reinforcement Loudspeaker
JRX200 Series Dual 15" Sound Reinforcement Loudspeaker
Model: JRX225
Brand:JBL
Please log in to see your price
View
MARTIN CDD12W
MARTIN CDD12W
Model: CDD12W
Brand:Martin Audio
Please log in to see your price
View
MARTIN CDD8W
MARTIN CDD8W
Model: CDD8W
Brand:Martin Audio
Please log in to see your price
View
MARTIN CDD8B
MARTIN CDD8B
Model: CDD8B
Brand:Martin Audio
Please log in to see your price
View

Customers who bought this product also purchased

Euro Boom Mic Stand
Euro Boom Mic Stand
Model: MS7701B
Brand:On-Stage
Please log in to see your price
View
Telescoping Euro Boom Mic Stand
Telescoping Euro Boom Mic Stand
Model: MS7701TB
Brand:On-Stage
Please log in to see your price
View
Mic Cable (25', XLR-XLR)
Mic Cable (25', XLR-XLR)
Model: MC12-25
Brand:On-Stage
Please log in to see your price
View
Tripod-Base Mic Stand
Tripod-Base Mic Stand
Model: MS7700B
Brand:On-Stage
Please log in to see your price
View
All-Aluminum Speaker Stand Pack
All-Aluminum Speaker Stand Pack
Model: SSP7950
Brand:On-Stage
Please log in to see your price
View
Heavy-Duty Euro Boom Mic Stand
Heavy-Duty Euro Boom Mic Stand
Model: MS9701B+
Brand:On-Stage
Please log in to see your price
View
Wall-Mount Speaker Bracket
Wall-Mount Speaker Bracket
Model: SS7323B
Brand:On-Stage
Please log in to see your price
View
2.5 lb Counterweight
2.5 lb Counterweight
Model: CW-3
Brand:On-Stage
Please log in to see your price
View

Product Properties

  • Bullet points

  • High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
    Attractive 18-gauge hexagon perforated, steel grille protects components from damage.
    Dual-angle pole-mount socket allows the speaker to tilt 10°for more uniform audience coverage.
    JBL 12 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
    JBL 2414H-C 25 mm (1 in) polymer diaphragm
    compression driver improves high frequency
    performance as well as system reliability.
    Non-resonant, all-steel handles are used.
    Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
    SonicGuard™ protects the high frequency driver from excess power without interrupting the performance.
    The advanced network topology crossover design shapes
    frequency response and delivers "coherent summation"
    in the crossover region.
    The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
  • Product Type
  • PA Loudspeaker

Description:

The JRX212 is a portable, twelve-inch, two-way speaker system designed specifically for live performance stage monitoring applications.


,
Power Rating : 250 W / 1000 W

Frequency Range (-10 dB) : 60 Hz - 20 kHz

Frequency Response (±3 dB) : 70 Hz - 19 kHz

Sensitivity (@1m) : 99 dB SPL
(1w/1m)

Nominal Impedance : 8 ohms

Recommended Amplifier Power : 250 W to 500 W into 8 ohms

Maximum SPL : 129 dB

Nominal Dispersion : 90º x 50º

Crossover Frequency : 1.8 kHz

Dimensions
(H x W x D) : 584 mm x 399 mm x 325 mm
(23 in x 15.7 in x 12.8 in)

Weight : 19.5 kg (43 lb)

High Frequency Driver : JBL 2414H-C 25mm (1 in) polymer diaphragm compression driver mounted on Progressive Transition™ Waveguide

Low Frequency Driver : JBL M112-8

Input Connectors : Neutrik® Speakon® NL-4 (x1); .25 in
TS phone jack (x1); parallel
