JBL

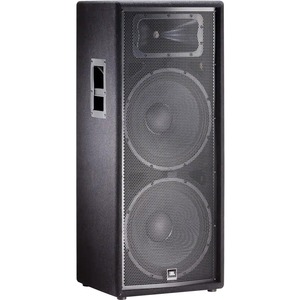

JRX200 Series Dual 15" Sound Reinforcement Loudspeaker

Brand: JBL
Model: JRX225
UPC: 050036904513
A "Quasi 3-Way" design offers the extra bass for which a dual fifteen system is designed, but without sacrificing performance in the critical mid-range. The upper woofer produces mid-frequencies and bass, while the lower woofer concentrates on bass only. The reduction in mid-range phase cancellation greatly improves midrange sound quality and coverage.
Attractive 18-gauge perforated, steel grille protects components from damage.
Dual JBL low frequency drivers with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more crosssectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
Non-resonant, all-steel handles are used.
Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region.
The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
more
Please log in to see your price

Related products

JRX200 Series 12″ Two-Way Stage Monitor
JRX200 Series 12" Two-Way Stage Monitor
Model: JRX212
Brand:JBL
Please log in to see your price
View
JRX200 Series 18″ Compact Subwoofer
JRX200 Series 18" Compact Subwoofer
Model: JRX218S
Brand:JBL
Please log in to see your price
View
JRX200 Series 15″ Sound Reinforcement Loudspeaker
JRX200 Series 15" Sound Reinforcement Loudspeaker
Model: JRX215
Brand:JBL
Please log in to see your price
View
MARTIN CDD12W
MARTIN CDD12W
Model: CDD12W
Brand:Martin Audio
Please log in to see your price
View
MARTIN CDD8W
MARTIN CDD8W
Model: CDD8W
Brand:Martin Audio
Please log in to see your price
View
MARTIN CDD8B
MARTIN CDD8B
Model: CDD8B
Brand:Martin Audio
Please log in to see your price
View

Customers who bought this product also purchased

Trombone Stand
Trombone Stand
Model: TS7101B
Brand:On-Stage
Please log in to see your price
View
12-inch Powered PA Speaker with Bluetooth
12-inch Powered PA Speaker with Bluetooth
Model: EON712
Brand:JBL
Please log in to see your price
View
Active Loudspeaker - 400 watts - 12" LF / 1&q
Active Loudspeaker - 400 watts - 12" LF / 1&q
Model: RS112A
Brand:Samson
Please log in to see your price
View

Product Properties

  • Product Type
  • PA Loudspeaker

Description:

The JRX225 is a portable, dual fifteen-inch, two-way speaker system designed specifically for applications in live music performance and music playback.

Power Rating : 500 W / 2000 W

Frequency Range (-10 dB) : 36 Hz - 19 kHz

Frequency Response (±3 dB) : 45 Hz - 16 kHz

Sensitivity (@1m) : 100 dB SPL
(1w/1m)

Nominal Impedance : 4 ohms

Recommended Amplifier Power : 500 W to 1000 W into 4 ohms

Maximum SPL : 133 dB

Nominal Dispersion : 90º x 50º

Crossover Frequency : 2 kHz

Dimensions
(H x W x D) : 1092 mm x 464 mm x 426 mm
(43 in x 18.3 in x 16.8 in)

Weight : 42.6 kg (94 lb)

High Frequency Driver : JBL 2414H-C 25mm (1 in) polymer diaphragm compression driver mounted on Progressive Transition™ Waveguide

Low Frequency Driver : JBL M128 x 2

Input Connectors : Neutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel
