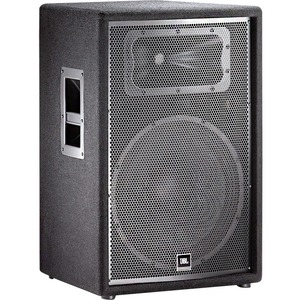

JRX200 Series 15" Sound Reinforcement Loudspeaker

JRX200 Series 15" Sound Reinforcement Loudspeaker

Name: JRX200 Series 15" Sound Reinforcement Loudspeaker
SKU: JRX215

Brand: JBL

Model: JRX215

UPC: 050036904506

Attractive 18-gauge perforated, steel grille protects components from damage.

Dual-angle pole-mount socket allows the speakers to tilt 10° for more uniform audience coverage.

High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.

JBL 15 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.

JBL 2414H-C 25 mm (1 in ) polymer diaphragm compression driver improves high frequency performance as well as system reliability.

Non-resonant, all-steel handles are used.

Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.

SonicGuard™ protects the high frequency driver from excess power without interrupting the performance.

The advanced network topology crossover design shapes the frequency response to deliver coherent summation in the crossover region.

The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in ) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.

Please log in to see your price

Specification Sheet

Specification Sheet (Download)
