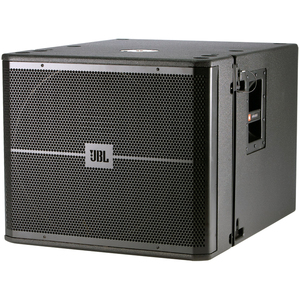

VRX Series 18" Suspendable Subwoofer System

The VRX918S is a compact, high power suspendable subwoofer system containing a 2268H neodymium magnet, patented Differential Drive®, 18" woofer in a front-loaded, vented enclosure.

Power Rating : 800 W / 1600 W / 3200 W

Frequency Range : 31 Hz – 220 Hz

Dimensions
(H x W x D) : 508 mm x 597 mm x 749 mm
(20.0 in x 23.5 in x 29.5 in)

Frequency Response : 34 Hz – 220 Hz

Recommended
Crossover Frequencies : 80 Hz, 24 dB / octave HPF
80 Hz, 24 dB / octave LPF

System Maximum SPL : 130 dB SPL peak

System Sensitivity : 95 dB SPL

LF Driver : 1 x JBL 2268H 457 mm (18 in) Differential Drive woofer

Nominal Impedance : 8 ohms

Active Tunings : Tunings available at www.jblpro.com

Enclosure : Rectangular, 18 mm, 13-ply birch plywood

Suspension / Mounting : Optional VRX932LA-AF line array frame kit or 10mm eyebolt

Finish : Black DuraFlex™ finish

Grille : Powder coated, black, 16-gauge perforated steel with acoustical transparent charcoal foam backing.

Input Connectors : Neutrik® Speakon® NL-4 (x2)

Net Weight : 37 kg (81 lb)

Optional Accessories : SRX718S-CVR: Pull-over padded cover
SS4-BK: Adjustable, heavy-duty pole, M20 thread to
35 mm
WK-4: Caster kit
VRX-AF: Array Frame Kit
M-10 eyebolt kit
