Atlas Sound

1 x 1 Mic / Line Preamp

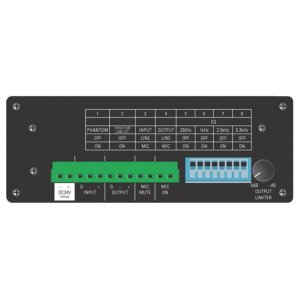

Model: TSD-ML11
UPC: 612079187829
  • Input impedance: 1.2KO Balanced, 600O Unbalanced
  • Phantom Power: 24VDC Defeatable
  • Line Input Level: 1V (0dBV) Balanced 2V (+6dBV) Balanced Output
  • Mic Input Level: 46dB Gain 10mV (-40dBV) Balanced = 2V (+6dbV) Balanced Output
  • Output impedance: 300O Balanced, 150O Unbalanced
  • Line Output Level: 1V (0dBV) In = 2V (+6dBV)
  • Mic Output Level: 10mV (-40dBV) In = 80mV (-21dBV)
  • Frequency Response: 20Hz - 20kHz (+/-1dB)
  • THD .06% & 1kHz
  • Signal to Noise Ratio: Line to Line 85dBV
  • Signal to Noise Ratio: Mic to Line 70dBV
  • Signal to Noise Ratio: Line to Mic 55dBV
  • Signal to Noise Ratio: Mic to Mic 55dBV
  • 24VDC Power Requirements: 100mA
125Hz /12dB Low Cut Filter
Four (4) Preset Frequency Notch Filters For Tone and Feedback Control
High Gain Output for Long Distance Signal Transmission
High Quality Microphone Preamp with Switchable 24V Phantom Power
Input Signal & Peak Indicators
Meets Energy Star Standards
Mic Mute/Mic On Via Contact Closure
Mic/Line I/O via Removable Phoenix Style Connector
Security Covers Included for All Front Panel Controls
Separate Ground Connections
Variable Output Limiter/Compressor
Please log in to see your price

Related products

Model: TSD-ML22VCA
Please log in to see your price
Model: TSD-PA122G
Please log in to see your price

Customers who bought this product also purchased

Product Properties

  • Product Type
  • Interface Solution

Description:

The TSD-ML11 high headroom, low noise mic preamp is perfect for use as a standalone preamp or in conference room systems, board meetings, courtrooms, council chambers, and public forum systems that need mute and push to talk microphone functions.

Unit features switchable phantom power for powering condenser microphones and has four EQ cut filters centered at common frequencies to eliminate feedback and control voice shaping. The variable mic preamp helps further eliminate noise for quiet operation as well as reduces unwanted coloration and changes in tonality and a 12dB @ 125Hz high pass filter is available on each mic input to minimize bass rumble and low frequency feedback in the system and ensure focus and clarity stays on voice sound spectrum. An output limiter/compressor is also included for system protection to avoid clipping and eliminate distortion. Mic Mute and Mic On control allows microphones in the system to be push-to-talk enabled or muted for speaker priority.

Input impedance: 1.2KO Balanced, 600O Unbalanced
Phantom Power: 24VDC Defeatable
Line Input Level: 1V (0dBV) Balanced 2V (+6dBV) Balanced Output
Mic Input Level: 46dB Gain 10mV (-40dBV) Balanced = 2V (+6dbV) Balanced Output
Output impedance: 300O Balanced, 150O Unbalanced
Line Output Level: 1V (0dBV) In = 2V (+6dBV)
Mic Output Level: 10mV (-40dBV) In = 80mV (-21dBV)
Frequency Response: 20Hz - 20kHz (+/-1dB)
THD .06% & 1kHz
Signal to Noise Ratio: Line to Line 85dBV
Signal to Noise Ratio: Mic to Line 70dBV
Signal to Noise Ratio: Line to Mic 55dBV
Signal to Noise Ratio: Mic to Mic 55dBV
24VDC Power Requirements: 100mA
