Atlas Sound

50W Two Channel Power Amplifier

Model: TSD-PA252G
UPC: 612079188031
Products Variants:
25W per Channel into 4O
50W Bridged into 8O
Dual RCA Inputs
Two (2) Balanced Inputs
Please log in to see your price
Specification Sheet Specification Sheet

Related products

Model: TSD-PA122G
Please log in to see your price
Model: TSD-RRMK
Please log in to see your price
Model: NCSA180Z-U-US
Please log in to see your price
Model: NCSA240Z-U-US
Please log in to see your price

Customers who bought this product also purchased

Product Properties

  • Product Type
  • Install Amplifier

Description:

The TSD-PA252G is a reliable, cost effective 4? stereo amplifier well suited for higher power amplification requirements.

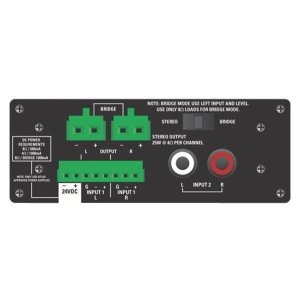

Output is 25W per channel at 4? or 50W bridge mono at 8?. Input is via balanced stereo phoenix style and unbalanced RCA connectors. Front panel gain controls provide adjustment for both left/right or bridged outputs and include removable knobs.

Power Output: 12W @ 8O x 2 CH, 25W @ 8O x 2 CH, 24W @ 4O x 2 CH, 50W @ 8O Bridged
Unbalanced Input Impedance: 10KO
Input Level: 316mV (-10dBV)
Balanced Input Impedance: 10KO Balanced, 5KO Unbalanced
Line Input Level: 500mV (-6dBV) Balanced
Frequency Response: 20Hz - 20kHz (+/-3dB)
THD .2% & 1kHz
Signal to Noise Ratio: 80dBV
24VDC Power Requirements: 500mA
