Electro Voice

Tour X Series 15" Loudspeaker

Model: TX1152
UPC: 800549769228
100 dB sensitivity, 133 dB maximum SPL
500 W continuous, 2000 W peak power handling
60° x 40° rotatable coverage pattern
Advanced fourth-order crossover with HF protection
DH3 1.25” (32 mm) diaphragm, 1” (25 mm)-exit pure titanium compression driver
Pole mount for tripod use
Six 3/8” threaded points for suspension
SMX2151 15” (381 mm) LF transducer with fully symmetric drive
Please log in to see your price
Specification Sheet Specification Sheet

Related products

Model: TX1122FM
Please log in to see your price

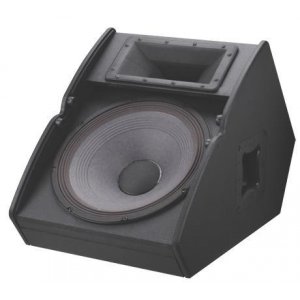

Model: TX1152FM
Please log in to see your price
Model: TX2181
Please log in to see your price

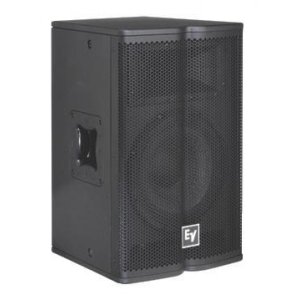

Model: TX1122
Please log in to see your price
Model: TX1181
Please log in to see your price
Model: CDD12W
Please log in to see your price

Customers who bought this product also purchased

Model: TX2181
Please log in to see your price

Product Properties

  • Active/Passive
  • 303
  • Coverage
  • 60° x 40° Rotatable
  • Frequency Range
  • 40Hz-20kHz (-10dB)
  • HF Driver Size
  • 1.25"
  • LF Driver Size
  • 15"
  • Max Dimensions
  • 30.6" x 17.5" x 17.5"
  • Max SPL
  • 133dB
  • Nominal Impedance
  • Product Type
  • PA Loudspeaker
  • Sensitivity
  • 100dB
  • System Power
  • 500W Cont.

Description:

TX1152 fits the bill when applications that require the low-frequency extension of a 15“ woofer, with the outstanding pattern control of a larger, rotatable, 60 x 40 horn.

Color: Black
Input Connections: Parallel Neutrik® NL4
Speaker Type: Fullrange
Frequency Response (-3 dB): 55 - 20000 Hz
Frequency Response (-10 dB): 40 - 20000 Hz
Internal Crossover: Yes
Recommended High-Pass Frequency: 40 Hz
Sensitivity 1 W/1 m: 100 dB
Max. SPL/1m (calc): 133 dB
Coverage (Nominal -6 dB) H: 60 °
Coverage (Nominal -6 dB) V: 40 °
Rotatable Horn: Yes
System Power Handling: 500 Watts
LF Transducer: SMX2151
HF Transducer: DH3
Crossover Frequency: 1650 Hz
Nominal Impedance (Passive): 8 ?
Minimum Impedance: 5.6 ?
Enclosure Material: Plywood and MDF with EVCOAT
Flying: Yes
Suspension: (6) 3/8-inch threaded inserts
Height: 776 mm (30.55")
Width: 446 mm (17.56")
Depth: 446 mm (17.56")
Weight Net: 27.8 kg (61.29 lbs)
