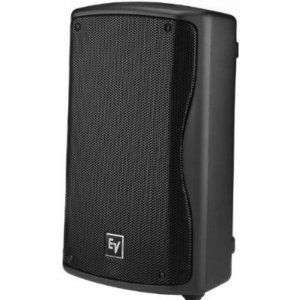

Electro Voice

High Performance 8" Loudspeaker

Model: ZX1-90
UPC: 800549688352
Products Variants:

EV8L high performance 8” woofer

Exclusive port design for extended LF response

200W cont., 400W program power handling

Integrated overload protection

DH2005 true compression driver (1,25” voice coil)

Rotatable 90 x 50 HF horn

Integrated monitor angle

Integrated pole-mount adapter and handle

4 metric inserts for additional mounting options

2 Neutik NL4 connectors

more
Please log in to see your price

Related products

Model: ZX1I-90
Please log in to see your price
List Price: $686.00
Model: ZX1I-90W
Please log in to see your price
List Price: $686.00
Model: ZXA1-90B-120V
Please log in to see your price
List Price: $795.00
Model: ZX1-SUB
Please log in to see your price
List Price: $843.00
Model: ZXA1-SUB-120V
Please log in to see your price
List Price: $1,167.00

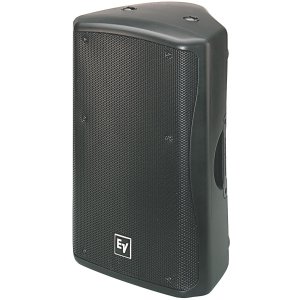

Model: ZX5-90W
Please log in to see your price
List Price: $1,773.00
Model: ZX5-60W
Please log in to see your price
List Price: $1,773.00
Model: ZX3-90B
Please log in to see your price
List Price: $1,525.00

Customers who bought this product also purchased

Model: EVID-C6.2
Please log in to see your price
List Price: $514.00
Model: 106.HTH-BLACK
Please log in to see your price
List Price: $530.00
Model: SNN122-25
Please log in to see your price
List Price: $59.50
Model: RS62-EZ-BK
Please log in to see your price
List Price: $292.00
Model: ELX200-10P-W
Please log in to see your price
List Price: $1,400.00

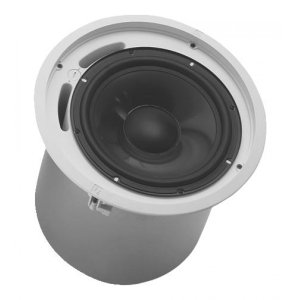

Model: EVID C10.1
Please log in to see your price
List Price: $724.00
Model: 104.HTH-BLACK
Please log in to see your price
List Price: $330.00
Model: E6CABLEL2AT
Please log in to see your price
List Price: $75.00

Product Properties

  • Active/Passive
  • 303
  • Coverage
  • 90° x 50°
  • Frequency Range
  • 48Hz-20kHz (-10dB)
  • HF Driver Size
  • 1.25"
  • LF Driver Size
  • 8"
  • Max Dimensions
  • 17.98" x 11.12" x 10.38"
  • Max SPL
  • 123dB
  • Nominal Impedance
  • Product Type
  • PA Loudspeaker
  • Sensitivity
  • 94dB
  • System Power
  • 200W Cont.

Description:

ZX1 is a high-performance, compact loudspeaker with a lightweight, durable, high-tech enclosure engineered to provide maximum rigidity and acoustic performance.

Chassis Size: 203.2 mm (8")
Color: Black
Input Connections: Parallel Neutrik® NL4
Speaker Type: Fullrange
Speaker Type: Mid-High
Speaker Type: Two-Way
Speaker Type: Wedges
Frequency Response (-3 dB): 60 - 20000 Hz
Frequency Response (-10 dB): 48 - 20000 Hz
Internal Crossover: Yes
Sensitivity 1 W/1 m: 94 dB
Max. SPL/1m (calc): 123 dB
Coverage (Nominal -6 dB) H: 90 °
Coverage (Nominal -6 dB) V: 50 °
Rotatable Horn: Yes
System Power Handling: 200 Watts
LF Transducer: EV8L
HF Transducer: DH2005
Nominal Impedance (Passive): 8 ?
Outdoor: No
Height: 451 mm (17.76")
Width: 282 mm (11.1")
Depth: 263 mm (10.35")
Weight Net: 8.4 kg (18.52 lbs)
