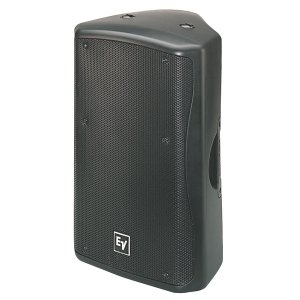

Zx Series High Power 15" Speaker (90°x50°, Weatherized)

Zx5 is a contemporary 15“, two-way cabinet with a high-impact, composite enclosure, featuring the newest generation of EV components: the all-new DXV3150 500-watt, 15“ woofer and the all-new, two“ neodymium ND2 compression driver.

Chassis Size: 381 mm (15")
Color: Black
Input Connections: Parallel Neutrik® NL4
Speaker Type: Fullrange
Speaker Type: Mid-High
Speaker Type: Two-Way
Speaker Type: Wedges
Frequency Response (-3 dB): 58 - 18000 Hz
Frequency Response (-10 dB): 39 - 20000 Hz
Internal Crossover: Yes
Recommended High-Pass Frequency: 36 Hz
Sensitivity 1 W/1 m:98 dB
Max. SPL/1m (calc): 132 dB
Coverage (Nominal -6 dB) H: 90 °
Coverage (Nominal -6 dB) V: 50 °
System Power Handling: 600 Watts
LF Transducer: DVX3150
Low Frequency Power Handling: 500 Watts
High Frequency Power Handling: 40 Watts
LF Nominal Impedance: 8 ?
HF Transducer: ND2
HF Nominal Impedance: 8 ?
Crossover Frequency: 1500 Hz
Nominal Impedance (Passive): 8 ?
Minimum Impedance: 6.5 ?
Flying: Yes
Outdoor: Yes
Height: 692 mm (27.24")
Width: 446 mm (17.56")
Depth: 411 mm (16.18")
Weight Net: 22.5 kg (49.6 lbs)
