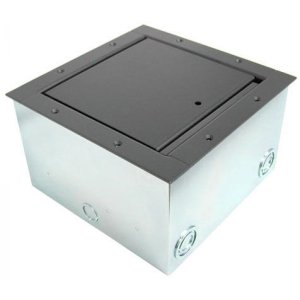

Super Pocket/Carpet Lid - Black

Ace Backstage Co., Inc.'s high capacitiy use Super Horizontal Panel Stage Pockets are the same size as the ACE Full Pockets with Back Box except they provide almost 3X the "Connectivity" capacity using a Horizontal Panel Design. The basic construction incorporates 3 sub-assemblies: 1) A unique Trim-Bezel lid assembly with spring loaded hinge pins and hinged cableway slot closure that mounts directly to the Back Box, 2) A set of panel mounting and A.C. barrier isolation raceway brackets, and 3) Super Pocket Body (#BRK102BBX Back Box).

The Super Pocket features welded heavy duty steel construction, choice of 3 decorator oven cured powder coat finishes (for the trim-bezel lid assembly), 2 lid choices (Standard Lid (SL) and Carpet Lid (CL)), plus solid brass or stainless steel trim bezel lid assembly finishes. Add a host of stock prefabricated or custom audio, communications, control, data, electric, video, and voice panels and connectors for a complete Stage Pocket System. The in-floor appearance is the same as the Full Pocket.

All ACE Super Stage Pockets Trim-Bezel Lid assemblies are heavy duty welded steel construction, with a 1/8" (nominally 11 ga. (.120")) thick CRS steel Lid and Mounting Flange. The 14 ga. (.071") thick CRS steel Super Pocket Body Back Box is precision die formed and jig welded. The Super Stage Pocket resists bending under even the most severe stage loads.

Removable spring loaded hinge pins permits easy exchange of lids for carpet lids, locking lids, standard lids, and other custom application lids. A generous cable way slot of 3/8" x 8" permits easy cable exit from the stage pocket, even for large gauge cables. A cableway slot closure channel closes the slot when not in use. The Super Stage Pocket has an easy installation into 10" x 10" cutout in the stage floor. Open easy access from top of the Super Stage Pocket to connector panels makes for easy installation.

A scratch/wear resistant finish, oven cured powder coat is electro-staticly applied inside and outside the entire trim-bezel lid assembly. Decorator neutral Antique Copper Vein or Textured Black finishes are standard. A Solid Brass Lid and Mounting Flange as well as Solid Stainless Steel Lid and Mounting Flange are also available by special order. The Super Pocket Body Back Box comes with a clear zinc finish (Mil Spec QQ-Z-325E Type I, Class II). The Super Stage Pocket's solid rubber Lid Stops cradle the lid to prevent lid rattle.
,
Utilizing ACE's "Connectrix" System will allow mounting of up to 25 "Connectrix", Neutrik®, Switchcraft®, and/or Custom Connectors* in the Super Stage Pocket. The Horizontal Panel Design in the Super Pocket is designed for high capacity connectivity. In less than one square foot (10.5”x10.5”) the Super Pocket provides abundant panel space for up to 25 connectors* and a barrier isolated raceway ready for 2 duplex electric outlets (multiple circuits). This large connectivity capacity is possible using a Horizontal Panel Design and a set of panel mounting and A.C. barrier isolation raceway brackets. Generous combination conduit knockouts on four sides provides in-out-and-thru ways for both low voltage and AC electric cabling. Generous clearances above and below the panel(s) permit easy termination and access to an array of audio, video, data, communication and control connections.

Includes
• (1) Trim Bezel Mounting Flange
• (1) Stage Pocket Body Back Box
• (1) Lid
• (2) Hinge Pins
• (2) Springs
• (8) #8 Self Tapping Sheet Metal/Wood Screws
• (1) Slot Closure (attached)

Specs
• Super Stage Pocket Body Size = 10.000” W x 6.000” H x 10.000” D
• Super Stage Pocket Lid & Mounting Flange Size = 10.500” W x 0.937” H x 10.500” D
• Super Stage Pocke
