Atlas Sound

8" Sound Masking Speaker w/ 4W Transformer and Round Enclosure (White)

Model: M1000R-W
UPC: 612079186884
25 to 4 watt (@70.7V) power selection (plus OFF) via external switch
382in3 (6.26L) enclosure volume for accurate low frequency masking spectrum reproduction
Balanced enclosure design to ensure level orientation when suspended (78" (2m) suspension chain included)
Fully assembled package includes 8" transducer with high quality line matching transformer
Sleek, round appearance designed for mounting in open plenum areas where speakers may be visible
Strain relief to facilitate input termination
Tested and approved to UL2043 standard for use in air handling (plenum) spaces
UL1480 and UL2043 Listed
White finish to blend in with almost any ceiling décor
Please log in to see your price

Related products

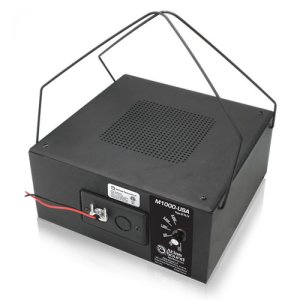

Model: M1000-USA
Please log in to see your price
Model: DRB-1
Please log in to see your price
Model: DM
Please log in to see your price
Model: E-P-W-16-4
Please log in to see your price
Model: E-A-W-16-4
Please log in to see your price
Model: E-A-W-25-4
Please log in to see your price

Customers who bought this product also purchased

Product Properties

  • Bullet points
  • 25 to 4 watt (@70.7V) power selection (plus OFF) via external switch
    382in3 (6.26L) enclosure volume for accurate low frequency masking spectrum reproduction
    Balanced enclosure design to ensure level orientation when suspended (78" (2m) suspension chain included)
    Fully assembled package includes 8" transducer with high quality line matching transformer
    Sleek, round appearance designed for mounting in open plenum areas where speakers may be visible
    Strain relief to facilitate input termination
    Tested and approved to UL2043 standard for use in air handling (plenum) spaces
    UL1480 and UL2043 Listed
    White finish to blend in with almost any ceiling décor
  • Product Type
  • Privacy / Safety System

Description:

The M1000R-W is a perfect solution for contemporary office spaces with open ceiling designs where sound masking is used to enhance speech privacy. The sleek round design and low gloss white finish will blend in nicely with painted ductwork, lighting and other devices suspended overhead.

A high efficient 8" paper cone transducer coupled with a low insertion loss 70.7V transformer are factory assembled into the 382 in3 round enclosure. System level tuning is easily achieved via an external tap selector switch that includes settings for .25, .5, 1, 2 & 4 watts plus an OFF position. Installation is made easy via the included 78" (2m) suspension chain system that allows quick mounting and height adjustment of the M1000R-W. An integral wire strain relief strategically located on the top of the enclosure allows for secure speaker cable termination.

Loudspeaker Type: 8" Dual Cone
Magnet Size: 10oz (260g)
Transformer Taps: .25, .5, 1, 2, & 4 Watts, Plus OFF
Sound Dispersion: Upward
Enclosure Volume: 382in³ (6.26 ltrs.)
Height: 3.937" (100mm)
Outside Diameter: 12.992" (330mm)
Weight: 9.2lbs (4.17kg)
