Atlas Sound

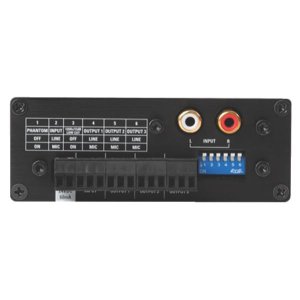

1 x 3 Distribution Amplifier

Model: TSD-DA13
UPC: 612079187768
12dB/Octave Low Cut Filter @ 125Hz
High Gain (50dB), Low Noise Mic Preamp
High Gain Output for Driving Long Balanced Lines
Meets Energy Star Standards
One (1) Balanced Mic/Line Input with Switchable 24V Phantom Power
Removable Phoenix Style I/O Connectors
Separate Ground Connections
Signal/Peak Indicator LED's
Summed Dual RCA Input
Three (3) Isolated Balanced Mic/Line Outputs
Please log in to see your price

Related products

Model: TSD-PS24V250MA
Please log in to see your price
Model: TSD-PS24V500MA
Please log in to see your price
Model: TSD-PS24V2500MA
Please log in to see your price
Model: TSD-DA28
Please log in to see your price
Model: TSD-DCPDV
Please log in to see your price
Model: TSD-DCPD
Please log in to see your price
Model: DA2
Please log in to see your price
Model: 291GY0500
Please log in to see your price

Customers who bought this product also purchased

Product Properties

  • Product Type
  • Interface Solution

Description:

The TSD-DA13 1x3 distribution amplifier is designed to provide clean, isolated signal distribution locally or to remote locations. The unit allows a balanced mic or line level source to be distributed to three isolated variable outputs making it a perfect solution for applications including convention centers, houses of worship, restaurants/sports bars and industrial facilities.

A high quality, low noise mic pre-amp, defeatable 3dB low cut filter @ 125Hz and dual summing RCA line level inputs are included as part of the unit's input section. These features combined with the 3 mic / line level outputs allow for multiple configurations.

Isolation between outputs prevents crosstalk, removes miss matched input impedance concerns and allows for adjustable levels on each connected device.

All I/O (except the summing RCA inputs) is via Phoenix style connectors for installation convenience.

Input Impedance: 1.2KO Balanced, 600O Unbalanced
Input Low Cut Filter: 125Hz/12dB Defeatable
Output impedance: 300O Balanced, 150O Unbalanced
Frequency Response: 20Hz - 20kHz (+/-1dB)
THD: .06% & 1kHz
Signal to Noise Ratio: 90dB
24VDC Power Requirements: 60mA
Height: 1.5" (3.81 cm)
Width: 4" (10.16 cm)
Depth: 2.5" (6.35 cm)
Weight: 6oz., .165kg
