Atlas Sound

Variable DC Power Distribution

Model: TSD-DCPDV
UPC: 612079187799
1 in 6 Out Configuration
DC Filtering and Isolation Per channel
Four (4) Independent 24V Outputs
Meets Energy Star Standards
Power Distribution for Multiple TSD's From a Single Power Supply
Separate Ground Connections
Two (2) 5V DC USB charge ports
Two (2) 5V to 24V Variable Outputs
Please log in to see your price

Related products

Model: TSD-PS24V250MA
Please log in to see your price
Model: TSD-PS24V500MA
Please log in to see your price
Model: TSD-PS24V2500MA
Please log in to see your price
Model: TSD-DA13
Please log in to see your price
Model: TSD-DA28
Please log in to see your price
Model: TSD-DCPD
Please log in to see your price
Model: DA2
Please log in to see your price
Model: 291GY0500
Please log in to see your price

Customers who bought this product also purchased

Product Properties

  • Bullet points
  • 1 in 6 Out Configuration
    DC Filtering and Isolation Per channel
    Four (4) Independent 24V Outputs
    Meets Energy Star Standards
    Power Distribution for Multiple TSD's From a Single Power Supply
    Separate Ground Connections
    Two (2) 5V DC USB charge ports
    Two (2) 5V to 24V Variable Outputs
  • Product Type
  • Interface Solution

Description:

The TSD-DCPDV is designed to distribute power to TSD devices or other equipment requiring DC power and is also ideal for use with wireless microphones that typically require 12-18VDC PSUs.

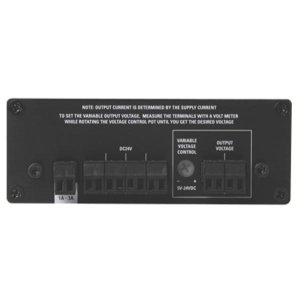

Rear panel includes one 9-24V input for a user selectable power supply up to 2500mA, four fixed 24V outputs and two 5-24V variable outputs. Voltage for variable outputs is adjusted from a secure trim pot. In addition, two front panel USB ports are available for charging other devices or for USB style rack lighting.

DC Voltage input: 1A-3A, 24V DC, 3A Max
DC Voltage Output: Fixed 24V DC, Current Output Related to Input Power Supply and Load
DC Voltage Output: Fixed USB 5V DC, 500mA Each Power Supply and Load
DC Voltage Variable: Qty 2, Ports 1 Adjustable Voltage, Variable DC Output 5V - 24VDC, 500mA Each
Height: 1.5" (3.81 cm)
Width: 4" (10.16 cm)
Depth: 2.5" (6.35 cm)
Weight: 6oz., .165kg
