Atlas Sound

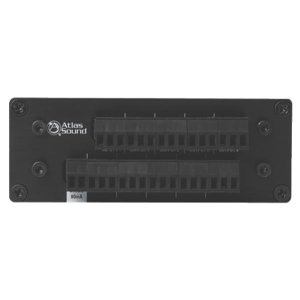

2 x 8 Distribution Amplifier

Model: TSD-DA28
UPC: 612079187775
Eight (8) Isolated Balanced Line Outputs
High Gain Output for Driving Long Balanced Lines
Meets Energy Star Standards
Removable Phoenix Style I/O Connectors
Security Covers Included for All Front Panel Controls
Separate Ground Connections
Signal & Peak Indicator LED's For Each Channel
Two (2) Balanced Line Inputs
Please log in to see your price

Related products

Model: TSD-PS24V250MA
Please log in to see your price
Model: TSD-PS24V500MA
Please log in to see your price
Model: TSD-PS24V2500MA
Please log in to see your price
Model: TSD-DA13
Please log in to see your price
Model: TSD-DCPDV
Please log in to see your price
Model: TSD-DCPD
Please log in to see your price
Model: DA2
Please log in to see your price
Model: 291GY0500
Please log in to see your price

Customers who bought this product also purchased

Product Properties

  • Product Type
  • Interface Solution

Description:

The TSD-DA28 2x8 distribution amplifier is designed to provide clean, isolated signal distribution locally or to remote locations. The unit allows two independent balanced line level source inputs to be distributed to eight isolated variable outputs making it a perfect solution for applications including convention centers, houses of worship, restaurants/sports bars and industrial facilities.

Isolation between outputs prevents crosstalk, removes miss matched input impedance concerns and allows for adjustable levels on each connected device. All I/O is via Phoenix style connectors for installation convenience and inputs may be easily paralleled for 1 in / 8 out configuration.

Input impedance: 10KO Balanced, 5KO Unbalanced
Output impedance: 300O Balanced, 150O Unbalanced
Frequency Response: 20Hz - 20kHz (+/-1dB)
THD: .06% & 1kHz
Signal to Noise Ratio: 90dB
24VDC Power Requirements: 80mA
Height: 1.5" (3.81 cm)
Width: 4" (10.16 cm)
Depth: 2.5" (6.35 cm)
Weight: 6oz., .165kg
