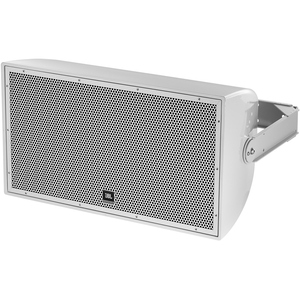

High Power 2-Way All Weather Loudspeaker with 1 x 15" LF & Rotatable Horn (Gray)

The AW595 is a high power, lightweight, 2-way, full-range loudspeaker system comprised of the JBL Differential Drive dual voice coil and dual magnetic gap 2265H-1 380 mm (15 in) low-frequency driver and 2432H high-frequency 38 mm (1.5 in) exit, 75 mm (3 in) voice-coil compression driver. The large format Progressive Transition wave-guide provides excellent 90° x 50° coverage. The waveguide is rotatable so the loudspeaker system can used in either the vertical or horizontal orientation. The system is equipped with a 400 W 70/100V transformer. A heavy-duty stainless steel U-type mounting bracket is included and allows for easy installation on flat surfaces or in 90° corners. The enclosure is constructed of multilayer glass composite and is heavily braced to maximize lowfrequency performance. The 14-gauge stainless steel grille, backed with open cell foam and stainless steel mesh, provides excellent protection in the harshest environments. The AW595 is part of JBL’s AE Series, a versatile family of loudspeakers intended for a wide variety of applications.

Frequency Range (-10 dB) : 35 Hz – 20 kHz

Frequency Response (±3 dB) : 55 Hz – 19 kHz

Coverage Pattern : 90° x 50°, rotatable waveguide

Directivity Factor (Q) : 12.6

Directivity Index (DI) : 11 dB

Crossover Frequency : 1.2 kHz

Long-Term System Power Rating (IEC) : 600 W (2400 W peak), 100 hrs

Maximum SPL : 128 dB-SPL cont avg (134 dB peak)

System Sensitivity (1W @ 1m) : 100 dB SPL

70V/100V Transformer Taps : 70V: 400 W, 200 W, 100W
100V: 400W, 200W

Suspension Attachment : 2 x M10 for Included U-Bracket, 2 x M6 for aiming stabilization, 1 x M10 on rear for safety.

Grille : Three layer grille assemblies consisting of 14-gauge powder coated stainless steel, backed with open cell foam and stainless steel mesh.

Input Connector : CE-compliant covered barrier strip terminals. Barrier terminals accept up to 5.2 sq mm (10 AWG) wire or max width 9 mm (.375 in) spade lugs.

Environmental Specifications : IP56 per IEC 529

Dimensions (H x W x D in vertical cabinet orientation) : 485 x 810 x 478 mm
(19.1 x 31.9 x 18.8 in)

Net Weight : 28.3 kg (62.5 lb)
