Atlas Sound

8" Coaxial Speaker with 32W Transformer

Model: FA138T327
UPC: 612079179329
Products Variants:
100-Watt Unit Offers Extended Sound Pressure Levels for High/Vaulted Ceiling Applications
Loudspeaker Conveniently Front Loads into Acoustically-Matched Enclosure, Plaster or Trim Ring
Patented System Design Provides Easy Installation
Performance Sensitivity Offers Enhanced Audio Clarity
System Components Include: Transformers, Acoustic Enclosures, Tile Bridge, Plaster Ring, Trim Ring and Hardware-Free Grilles
Please log in to see your price
Specification Sheet Specification Sheet
Specification Sheet (Download)

Related products

FAP33T-W with White Round Edgeless Grille Kit
FAP33T-W with White Round Edgeless Grille Kit
Model: FAP33T-WEGR
Brand:Atlas Sound
Please log in to see your price
View
4″ 2-Way Speaker Low Profile System with Transformer (White)
4" 2-Way Speaker Low Profile System with Transformer (White)
Model: FAP42TC
Brand:Atlas Sound
Please log in to see your price
View
8″ Tuned & Ported Ceiling Subwoofer System
8" Tuned & Ported Ceiling Subwoofer System
Model: FAPSUB-1
Brand:Atlas Sound
Please log in to see your price
View
6″ 2-Way Speaker System with Transformer (White)
6" 2-Way Speaker System with Transformer (White)
Model: FAP62T
Brand:Atlas Sound
Please log in to see your price
View
6.5″ Coaxial Speaker System with 70.7/100V-32W Tra
6.5" Coaxial Speaker System with 70.7/100V-32W Tra
Model: FAP63T-W
Brand:Atlas Sound
Please log in to see your price
View
3″ Full Range Speaker System with 70.7/100V-16W Tr
3" Full Range Speaker System with 70.7/100V-16W Tr
Model: FAP33T-W
Brand:Atlas Sound
Please log in to see your price
View
8″ Coaxial Tuned & Ported Ceiling System
8" Coaxial Tuned & Ported Ceiling System
Model: FAP82T
Brand:Atlas Sound
Please log in to see your price
View
4″ 2-Way Speaker System with Transformer (White)
4" 2-Way Speaker System with Transformer (White)
Model: FAP42T
Brand:Atlas Sound
Please log in to see your price
View

Customers who bought this product also purchased

Product Properties

  • Product Type
  • Ceiling Speaker

Description:

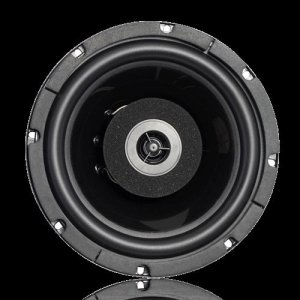

Model FA138 is Atlas Sound's premium 8" coaxial loudspeaker. This 100-watt unit includes a circuit board mounted high-pass/low-pass crossover which produces outstanding sound quality. It incorporates a tapered backplate for increased magnetic circuit efficiency and offers a frequency response of 85 Hz - 20 kHz. Model FA138 contains a Kevlar® fiber reinforced polypropylene cone woofer, a custom butyl rubber surround, a 11.2" vented Kapton voice coil, a 21 oz. magnet and a 1.2" mylar-dome ferrofluid tweeter for clean and powerful weather-resistant performance.

Depth: 5 1/2" (13.97 cm)
Diameter: 8 1/4" (20.955 cm)
Shipping Weight: 8.00 lbs (3.63 kgs)
Frequency Response: 75 Hz- 20 kHz (+5dB)
Power Taps: 70.7V
Speaker Type: Coaxial
Dispersion: 110°
Sensitivity: 89.5dB Average, 93dB Peak
UL Listed/Standard: 1480
